Elevate your packaging and product quality control with 100% confidence using the high-performance vacuum leak tester from Unisyntech. The machine body is constructed from durable, heavy-duty Stainless Steel #304 , featuring an easy-to-use digital system with One Button Control. It operates seamlessly with our 25 mm thick, jointless clear acrylic tank, allowing you to inspect and observe leaks with maximum clarity and precision. Supporting an ultimate vacuum pressure of up to 700 mmHg , the system offers a variety of standard tank sizes (S, M, L) or can be custom-made (Custom-size) to perfectly match your specific operational needs.


Water Leak Tester ⇓

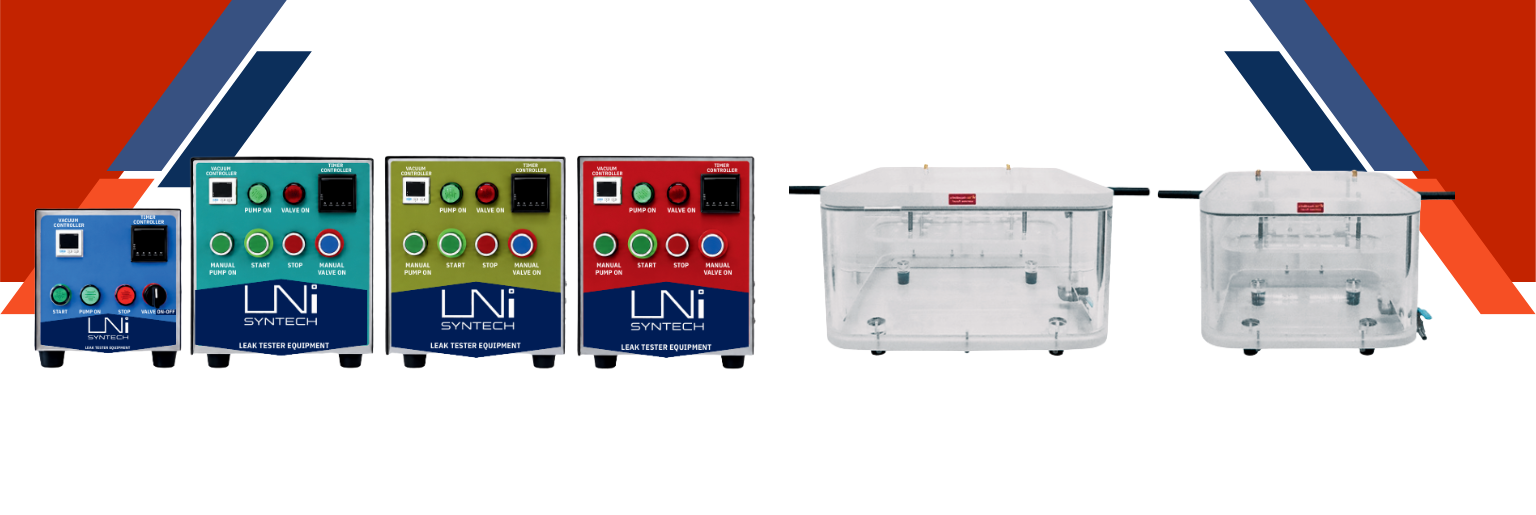

LEAK TESTER EQUIPMENT

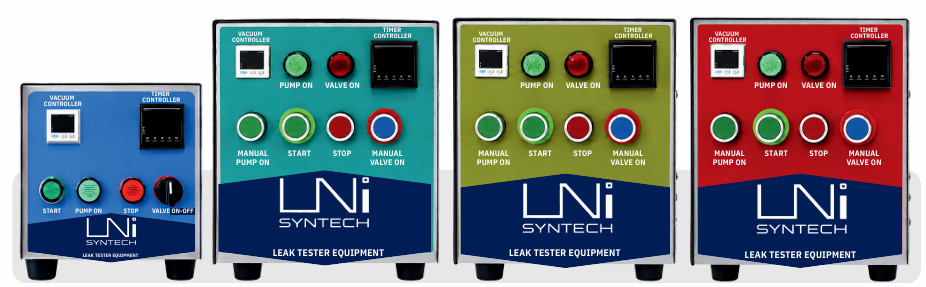

Vacuum Controller Specifications

  • Structure Material: Built from high-quality Stainless Steel #304 for maximum durability.

  • Control System: * Features an easy-to-use One Button Control.

    • Equipped with a Digital Controller.

    • Includes a Digital Timer displaying in minutes and seconds (min:sec).

  • Moisture Management: Built-in Moisture Trap to protect the system.

  • Power Supply: 220V / 50Hz.

  • Vacuum Controller Models & Comparison:

Model Ultimate Vacuum Recommended Acrylic Tank Size Supported Pressure Units
UNI-WL-500

500 mmHg

S

mmHg, inHg, kPa, kgf, Psi, bar

UNI-WL-600

600 mmHg

S, M

mmHg, inHg, kPa, kgf, Psi, bar

UNI-WL-650

650 mmHg

S, M, L

mmHg, inHg, kPa, kgf, Psi, bar

UNI-WL-700

700 mmHg

S, M, L

mmHg, inHg, kPa, kgf, Psi, bar

Acrylic Tank

Acrylic Tank Specifications

  • Material: Heavy-duty Clear Acrylic with a 25 mm thickness.

  • Manufacturing Process: Seamless Bending Edge (Jointless) construction to withstand high vacuum pressure.

  • Valves: Includes a Water Valve and a Water Drain Valve.

Standard Tank Dimensions & Weight:

Model Internal Dimensions (cm) External Dimensions (cm) Thickness (cm) Net Weight (kg)
UNI-AT-S (Size S)



25 x 25 x 25



30 x 30 x 35

2.5

12.5

UNI-AT-M (Size M)



40 x 40 x 25



45 x 45 x 35

2.5

25

UNI-AT-L (Size L)



55 x 55 x 25



60 x 60 x 35

2.5

45
